Mini-Capstone

Mini-cap is a one semester long project for Mechanical Engineering students. Our design brief was for a transmission capable of transmitting 50 HP, decreasing speed 6:1 and changing the axis of rotation 90°. CAD was done in Solidworks and so was the stress analysis.

Final CAD of the project.

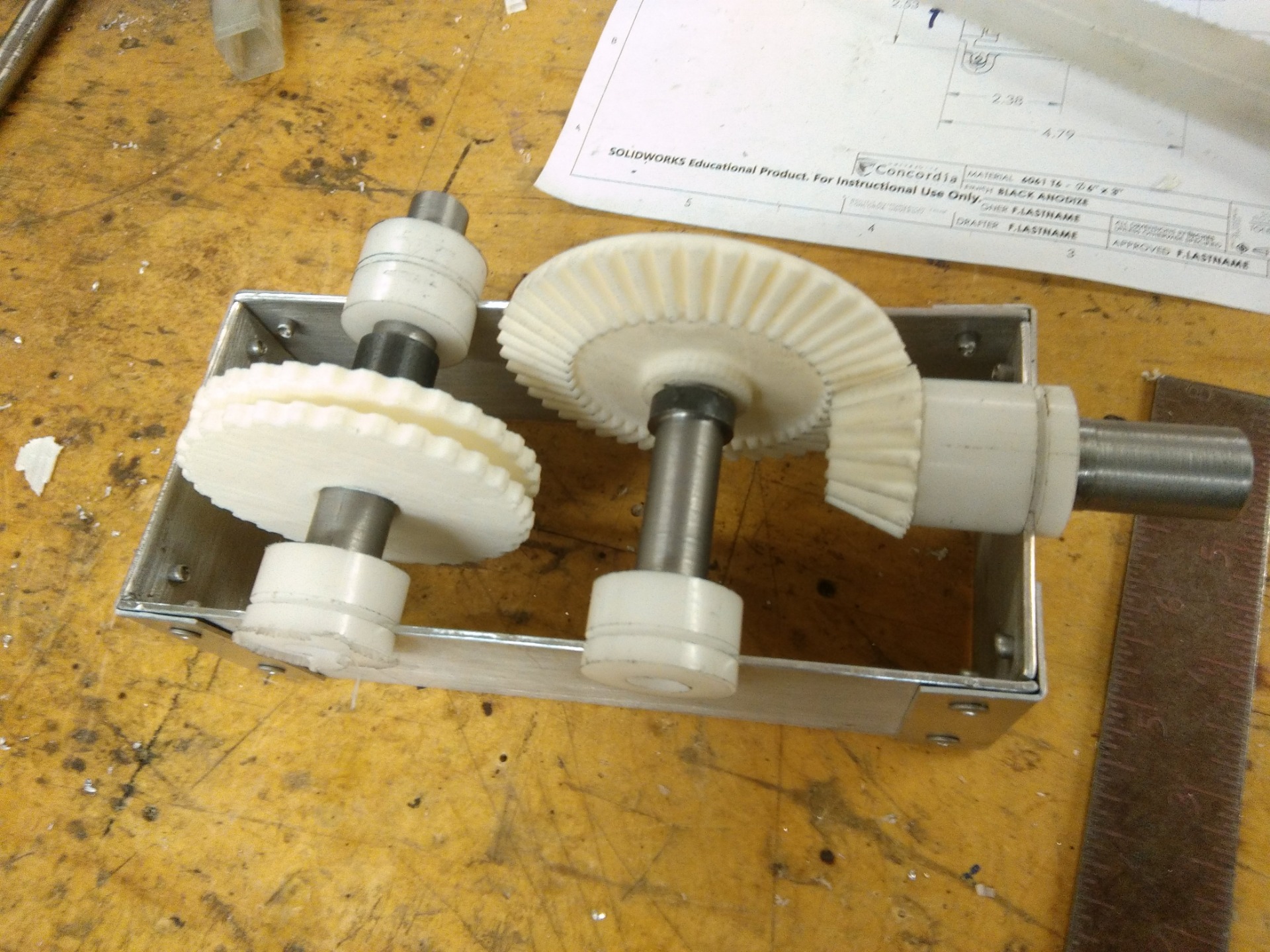

1:3 Scale model of the transmission.
